| Specifications |
| Specifications |

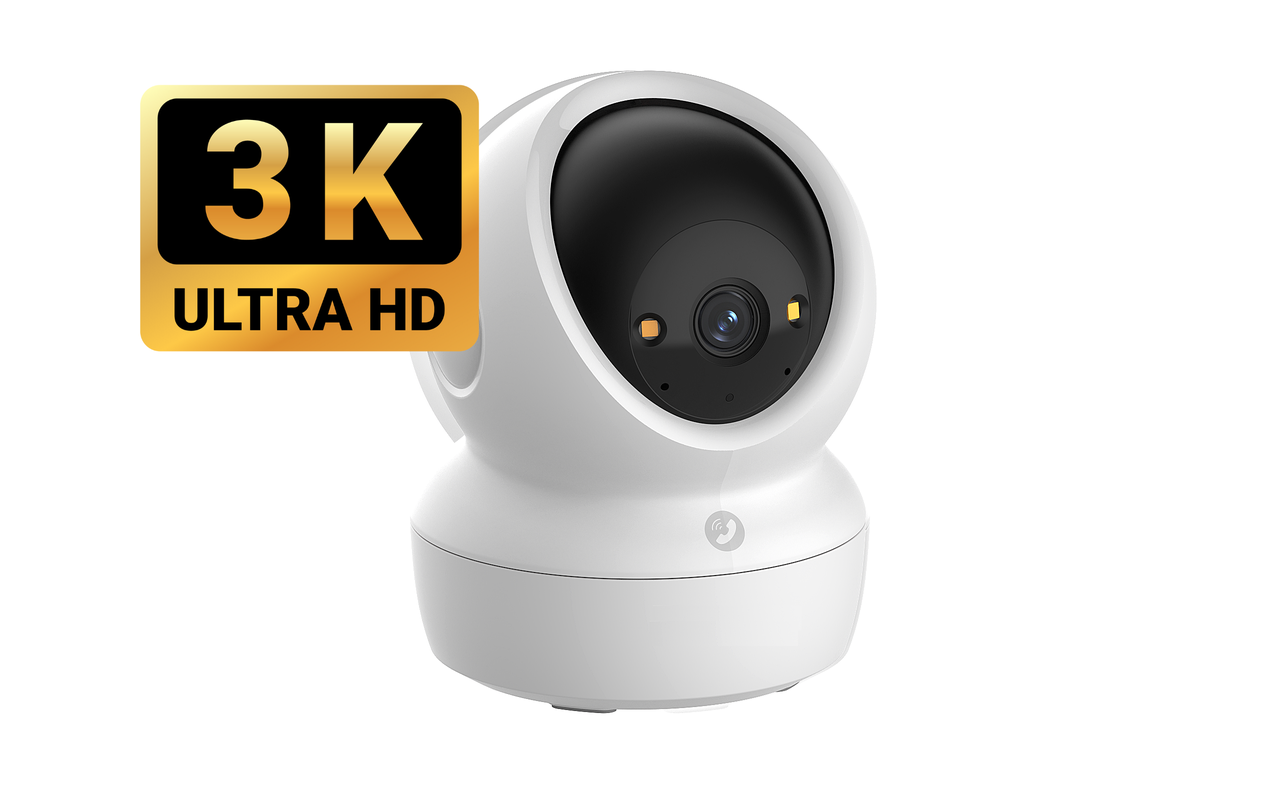

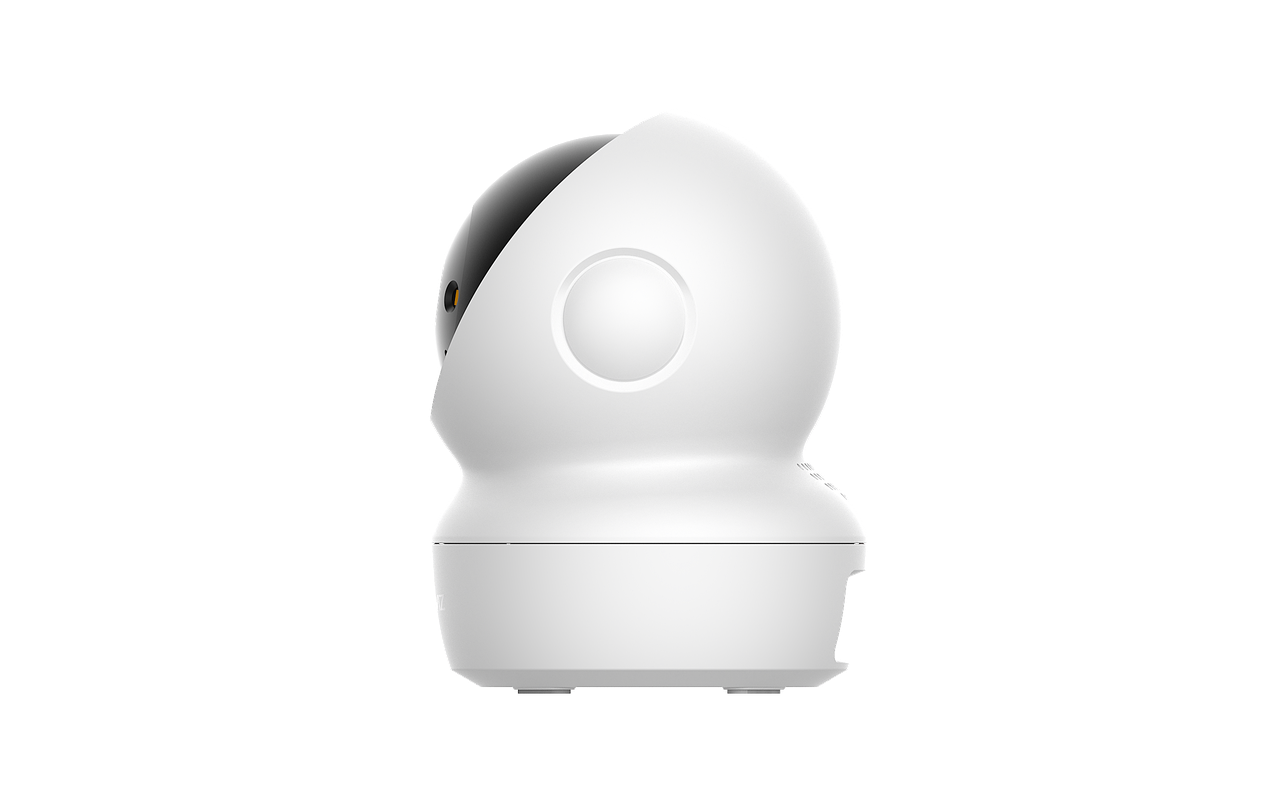

CS-H6c-R200-1Q5WFL |
| Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm@F1.6, view angle: 105°(Diagonal), 88° (Horizontal), 46°(Vertical) |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
WDR |
| Compression |
| Video Compression |
H.264 / H.265 |
| Video Bit Rate |
Adaptive bit rate |
| Image |
| Max. Resolution |

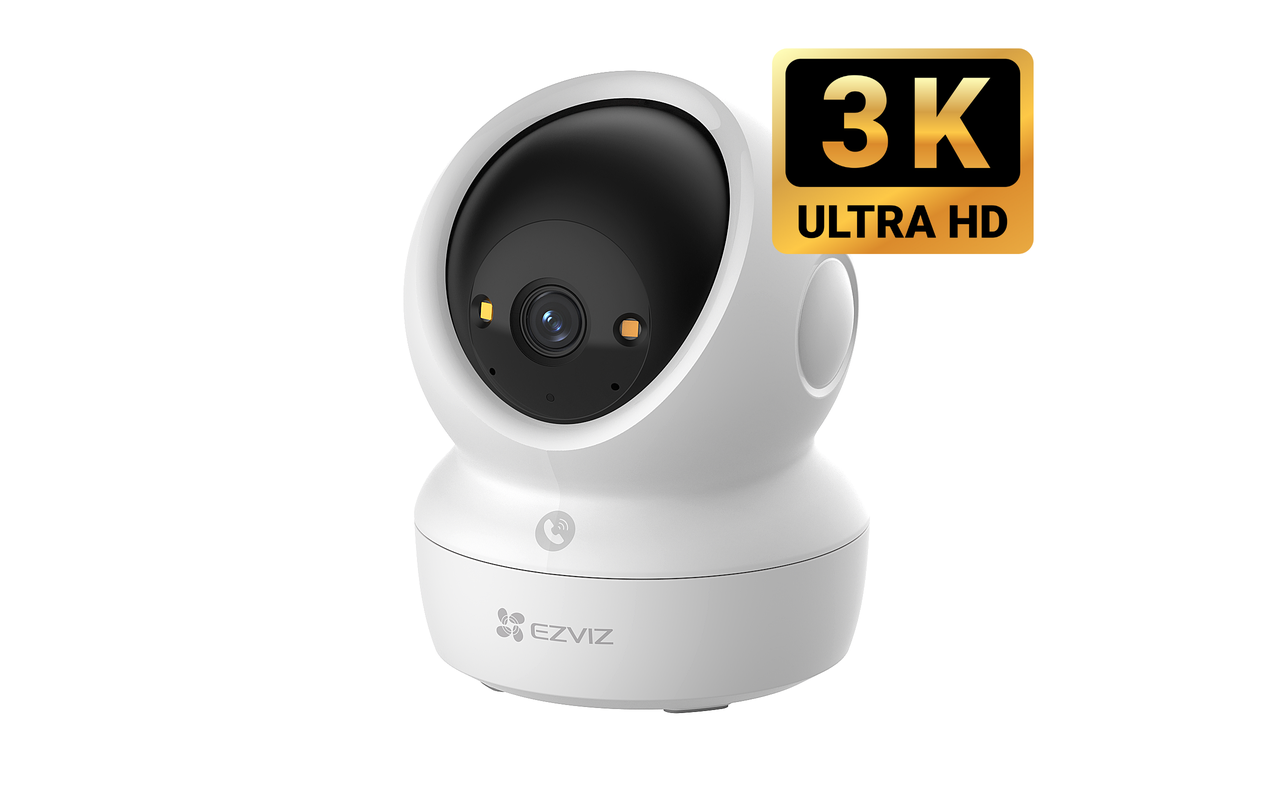

3K (2880 × 1620） |
| Frame Rate |
Self-adaptive during network transmission |
| Network |
| Smart Alarm |
Motion Detection, AI-Powered Human Shape Detection |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface |
| Storage |
Supports microSD card (max. 512 GB) |
| Power |
Type-C |
| Wired Network |

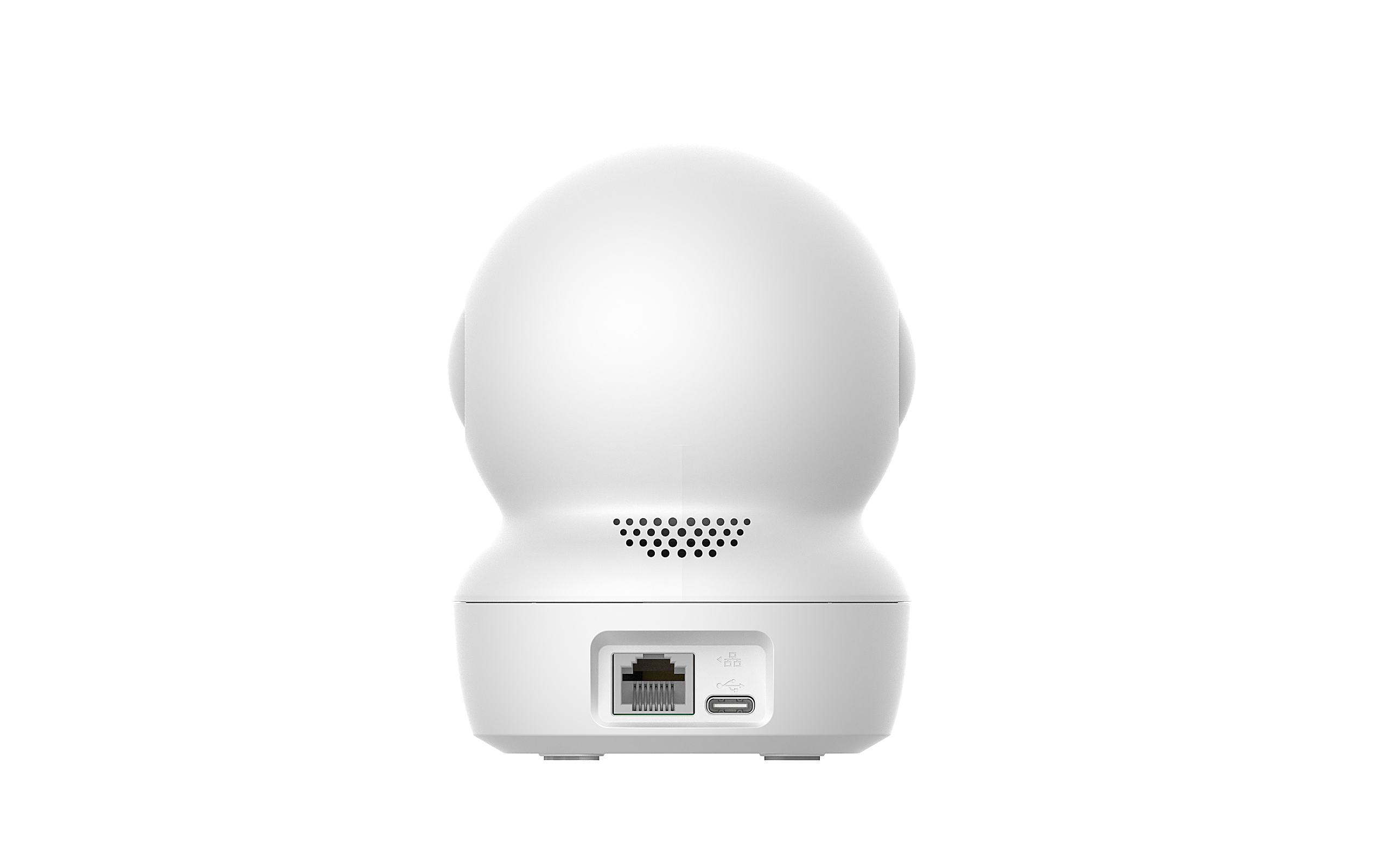

RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port) |
| Wi-Fi |
| Standard |
IEEE802.11a, 802.11b, 802.11g, 802.11n, |
| Frequency Range |
2.4 GHz: 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
2.4G: Supports 20 MHz |
| Security |
WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b 11Mbps, 11g 54Mbps, 11n MCS7, 11a 54Mbps, 11ac MCS9.11ax MCS11 |
| Output Power (EIRP) |
19 dBm |
| Antenna Gain |
1.9 dBi |
| General |
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F ) Humidity 95% or less (non-condensing) |
| Power Supply |
DC 5V / 2A |
| Power Consumption |
Max. 8 W |
| IR Range |
Max. 10 meters (32.81ft) |
| Dimensions |
88 × 88 × 117.3 mm (3.46 × 3.46 × 4.61 inch) |
| Packaging Dimensions |
103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch) |
| Net Weight |
222 g (0.49 lb) |
| In the box |
| In the box |
– H6c G1 Camera |
| – Power Adapter |
| – Power Cable |
| – Drill Template |
| – Mounting Plate |
| – Screw Kit |
| – Regulatory Information × 2 |
| – Quick Start Guide |
| Certifications |
| Certifications |
CE / UL / WEEE / REACH / RoHS |
